Garlock Compressed Fiber Gaskets

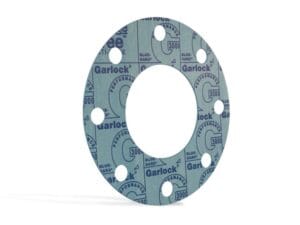

BLUE-GARD® Style 3000
The BLUE-GARD® Style 3000 compressed fiber gasketing is made with aramid fibers with an NBR binder. This gasket provides improved torque retention and drastically lowers emissions levels. It also cuts operational costs by reducing waste and energy consumption.
Application
- Utility Services
- Water
- Aliphatic hydrocarbons
- Oils
- Gasoline
Specifications
- Min Temperature: -73°C (-100°F)
- Max Temperature: 371°C (700°F)
- Max Continuous Temperature: 205°C (400°F)
- Max Pressure: bar (psi) 70 (1000)
Spec Sheet: Garlock Blue Guard 3000 Spec Sheet (PDF)

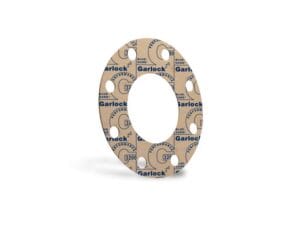

BLUE-GARD® Style 3200
The BLUE-GARD® Style 3200 gasket provides excellent sealability and improved torque retention. Available in a variety of specifications, it meets MIL-DTL-24696C Type 2 Specifications and can be used in water, saturated steam, and inert gas applications.
Application
- Water
- Saturated steam*
- Inert gases
Specifications
- Min. Temperature: -73°C (-100°F)
- Max. Temperature: 371°C (700°F)
- Max Continuous Temperature: 205°C (400°F)
- Max Pressure: bar (psi) 83 (1200)

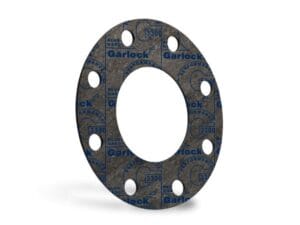

BLUE-GARD® Style 3300
The BLUE-GARD® Style 3300 provides excellent sealability, which
drastically lowers emissions levels and provides cost savings. This style can
be used in many applications, including refrigerants, oils, and fuels.
Application
- Water
- Saturated steam*
- Refrigerants
- Oils
- Fuels
Specifications
- Min Temperature: -73°C (-100°F)
- Max Temperature: 371°C (700°F)
- Max Continuous Temperature: 205°C (400°F)
- Max Pressure: bar (psi) 83 (1200)
Spec Sheet: Garlock Blue Guard 3300 Spec Sheet (PDF)

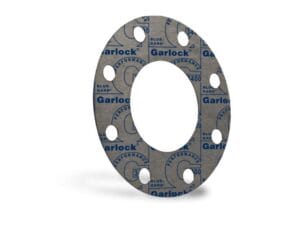

BLUE-GARD® Style 3400
The BLUE-GARD® Style 3400 is a compressed, non-asbestos gasket made from aramid fibers with an SBR binder. Its excellent sealability can drastically lower emissions levels and reduce waste in water, saturated steam*, and inert
gas applications.
Application
- Water
- Saturated steam*
- Inert gases
Specifications
- Min Temperature: -73°C (-100°F)
- Max Temperature: 370°C (700°F)
- Max Continuous Temperature: 205°C (400°F)
- Max Pressure: bar (psi) 83 (1200)

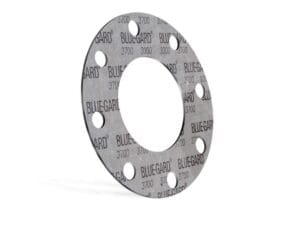

BLUE-GARD® Style 3700
The BLUE-GARD® Style 3700 is a compressed, non-asbestos gasket made from aramid fibers with an EPDM binder. This gasket drastically lowers emissions levels, fluid loss, and energy consumption.
Application
-
- Water
- Saturated steam*
- Inert gases
Specifications
- Min. Temperature: -73°C (-100°F)
- Max. Temperature: 370°C (700°F)
- Continuous Max: 205°C (400°F)
- Max Pressure: bar (psi) 83 (1200)

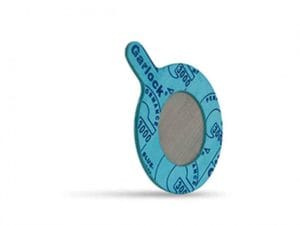

Strainer Gaskets
In line strainer gaskets are an effective and inexpensive way to protect valuable downstream equipment such as metering devices from dangerous debris in the pipeline. The stainless steel mesh acts as a filter to separate weld beads/slag, pipe scale, grit, and other foreign materials from the process fluids.
Data Sheet: Garlock Strainer Gaskets Data Sheet (PDF)
